GBH97-V36N220W450-SPC1

GBH97 Series Item Code: PMH00000004-99

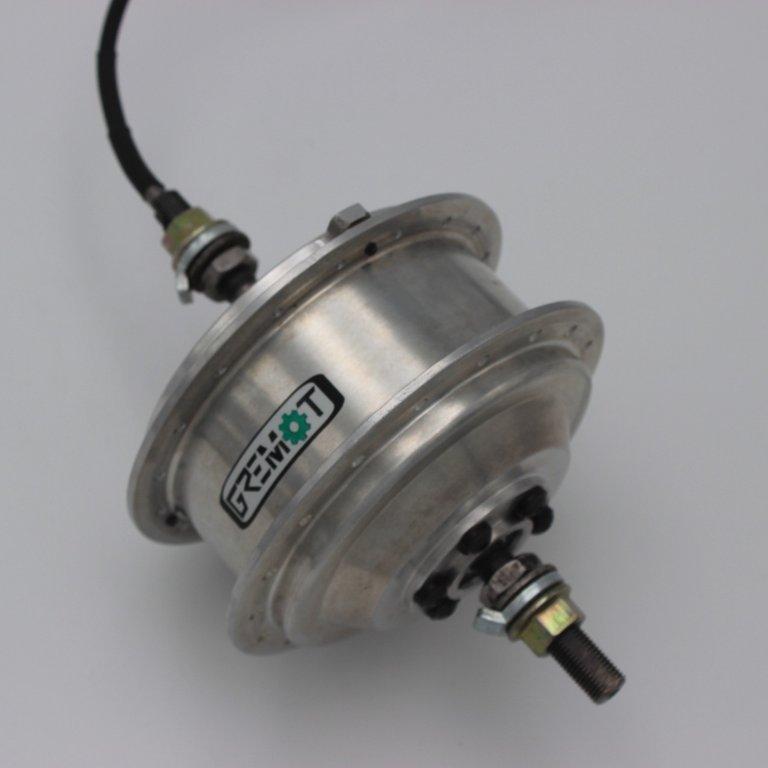

A 36V, 220 rpm Bicycle Hub Motor for e-bikes or e-cycles.
Can be customized to your rpm and wheel size, just reach out to us on contact@gremot.com

Rated Power	250 W (12 Nm @ 210 rpm)
Peak Power	500 W (22 Nm @150 rpm)
Max Speed	220 rpm (25 kmph w/26 inch rims)
Stall Torque	40 Nm
IP Rating	65
Operating Voltage	36 V
Motor Type	Geared Hub Motor
Over Locknut Dimension (OLD)	135 mm
Brake Compatibility	Rim Brakes and Disc Brake (160, 180 mm)
Direction of rotation (from wire exit side)	Clockwise (single direction)

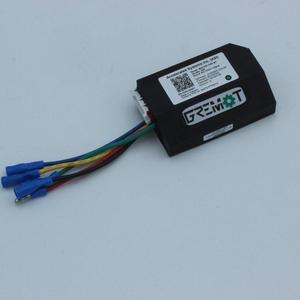

Paired with MTC-26A1 with 10A DC Current

Click to view/download the 3D Drawing. Available in a variety of formats for all modelling software.

2D with the important GD&T for integration with your product.
